Prerequisites

  • Configure router interfaces and read a routing table.
  • Understand /24 LANs, a /30 transit subnet, and next-hop addresses.

Follow the CCNA study path · Browse all SwitchLab labs

Topology

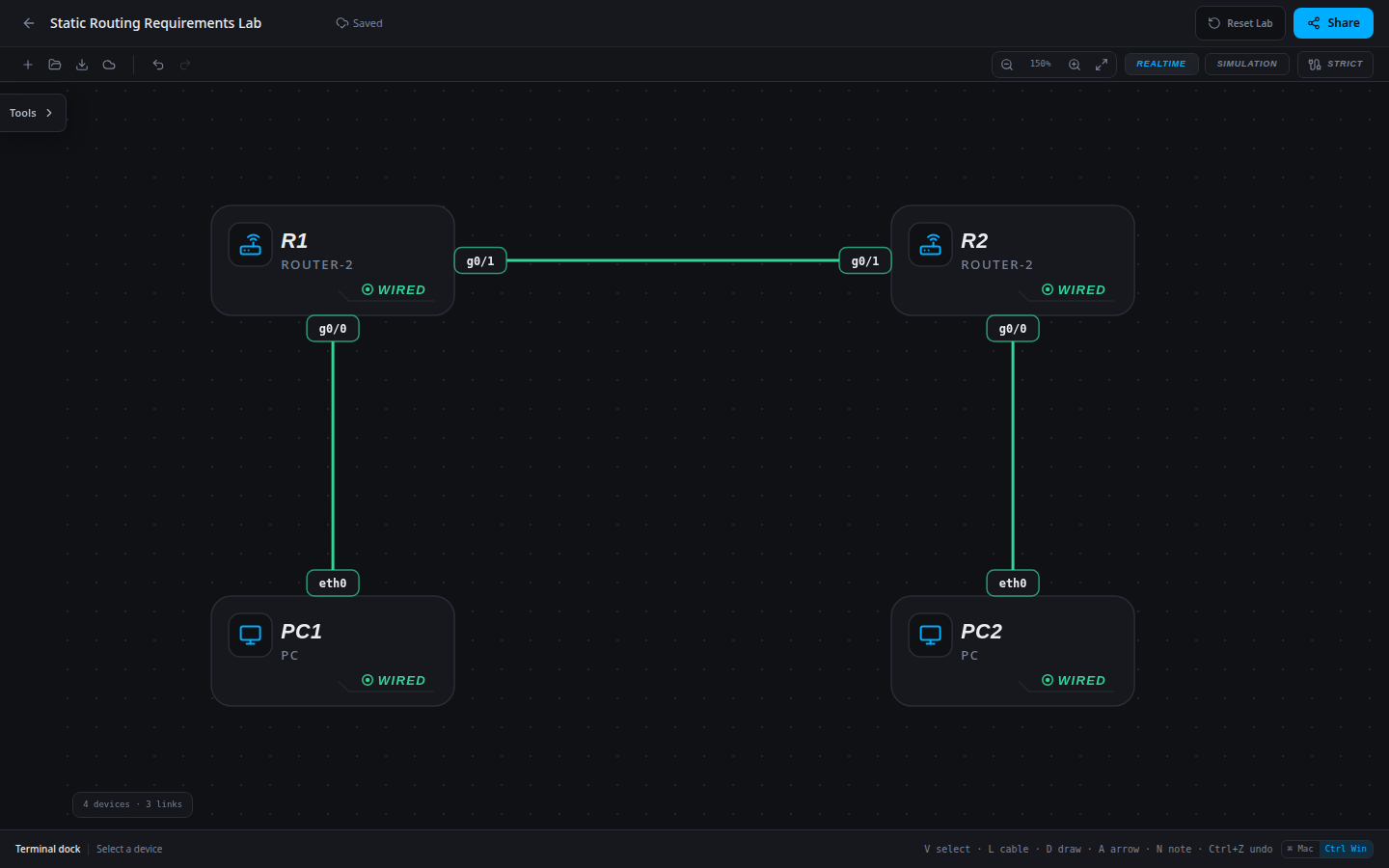

Static Routing Requirements Lab: actual SwitchLab starting topology
Starting topology captured in SwitchLab. Select the image to view it at full size.

4 devices · 3 links

Scenario

HQ and a small branch have a working point-to-point Ethernet connection. Interfaces and PCs are already addressed, but neither router knows the remote LAN. HQ requires a specific branch route; the stub branch sends unknown destinations toward HQ.

Objectives

  • Inspect connected routes and identify the two missing forwarding decisions.
  • Install an IPv4 network route at HQ and a default route at the branch.
  • Verify route type, next hop, and delivery in both directions.

CCNA blueprint

200-301 v1.1 objectives — this lab covers the following specific skills, not every subtopic in the domain.

  • 3.1.a — Read the static route code.
  • 3.1.d — Identify the next hop.
  • 3.3.a — Configure and verify an IPv4 default route.
  • 3.3.b — Configure and verify an IPv4 network route; IPv6 is outside this lab.

Starting information

  • R1 is HQ and R2 is the stub branch. Their g0/0 interfaces face the local PCs; g0/1 interfaces share 10.0.12.0/30.
  • PC1 is 10.10.10.10/24 via 10.10.10.1. PC2 is 10.20.20.20/24 via 10.20.20.1.
  • Physical interfaces are enabled and correctly addressed. There are no static routes or dynamic routing processes.
HostIPv4 addressMaskGateway
PC110.10.10.10255.255.255.010.10.10.1
PC210.20.20.20255.255.255.010.20.20.1
RouterInterfaceIPv4 addressMask
R1g0/010.10.10.1255.255.255.0
R1g0/110.0.12.1255.255.255.252
R2g0/010.20.20.1255.255.255.0
R2g0/110.0.12.2255.255.255.252
Device / portDevice / port
PC1 / eth0R1 / g0/0
R1 / g0/1R2 / g0/1
PC2 / eth0R2 / g0/0

Tasks

  1. Prove that each PC reaches its local gateway and that R1 reaches R2 over the transit network. Record why the remote ping fails.
  2. On R1, install exactly one route to 10.20.20.0/24 through R2’s transit address.
  3. On R2, install a default route toward R1. Do not add a dynamic routing protocol or change addressing.
  4. Inspect both routing tables. Verify the specific static route on R1 and gateway of last resort on R2.
  5. Verify PC1-to-PC2 and PC2-to-PC1 pings, explain the return path, and save the router configurations.

Useful commands

show ip interface brief
show ip route
show running-config
ping 10.0.12.2
ip route <network> <mask> <next-hop>
copy running-config startup-config

Progressive hints

Hint 1

Each router already knows its directly connected networks. Compare the destination LAN with those entries.

Hint 2

The forward packet and the reply each need a route. R1 needs the branch /24; R2 can use its only exit as the default.

Hint 3

The next hops are the peer addresses on 10.0.12.0/30. A default route uses destination 0.0.0.0 and mask 0.0.0.0.

Verification

  • Each PC still reaches its local gateway.
  • R1 shows S 10.20.20.0/24 via 10.0.12.2.
  • R2 shows a static default 0.0.0.0/0 via 10.0.12.1 and identifies its gateway of last resort.
  • PC1 → 10.20.20.20 and PC2 → 10.10.10.10 both succeed.

Solution / walkthrough

Show Solution

Use enable only from a > prompt; if already at #, begin with configure terminal.

R1

Use the directly connected peer as the next hop for the branch LAN.

enable
configure terminal
ip route 10.20.20.0 255.255.255.0 10.0.12.2
end
copy running-config startup-config

R2

The stub branch has a single exit. Its default route also carries replies to HQ.

enable
configure terminal
ip route 0.0.0.0 0.0.0.0 10.0.12.1
end
copy running-config startup-config

Run every verification check above after the changes. A saved configuration alone does not prove packet delivery.
