Topology

Implement a Source-and-Destination Access Policy: starting network imported into the SwitchLab sandbox.

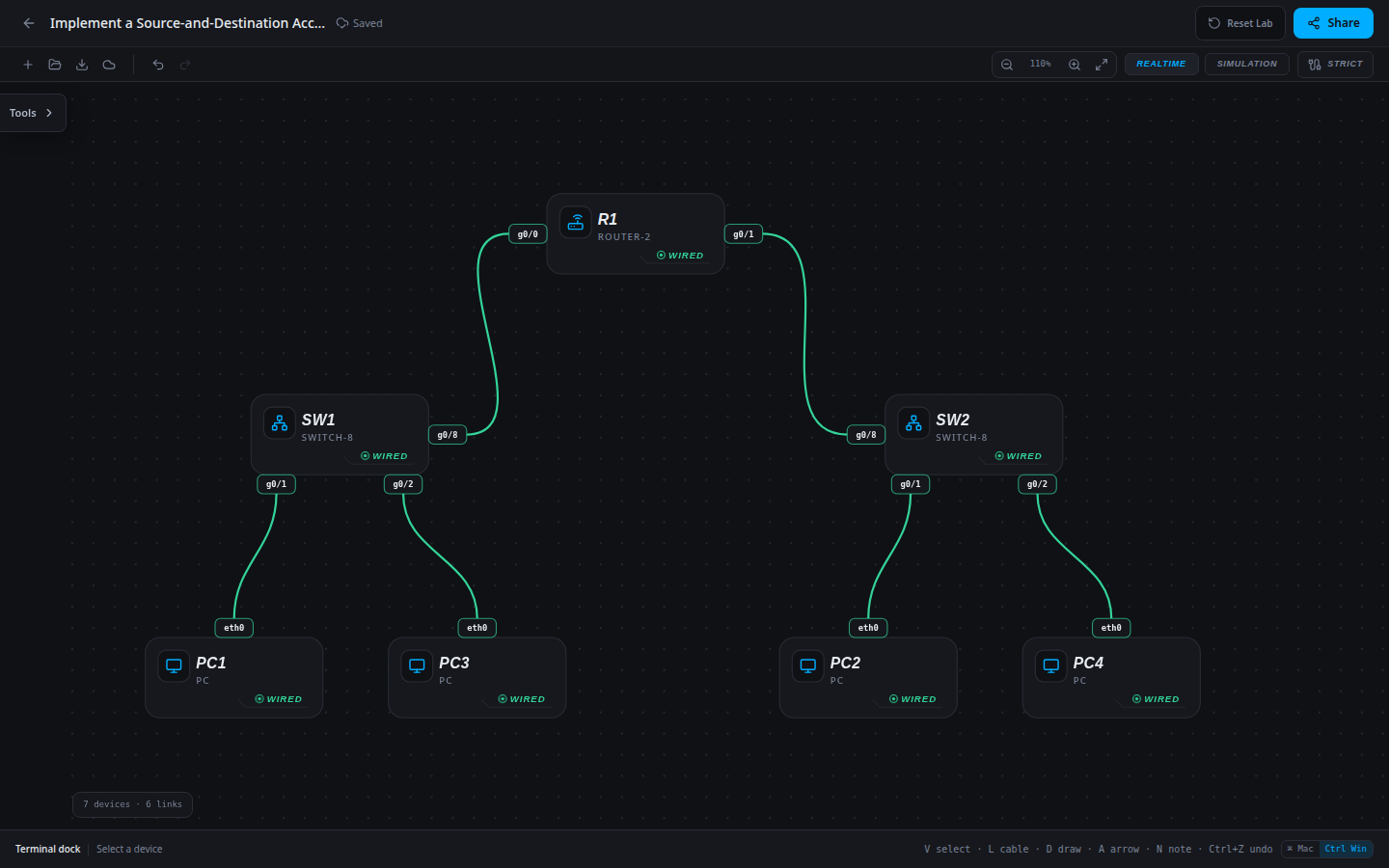

Starting topology captured in SwitchLab. Select the image to view it at full size.

7 devices · 6 links

Scenario

PC3 may reach PC4 but must not reach PC2. PC1 may reach both resources. Implement this exact policy without denying the entire resource subnet.

Objectives

  • Translate an explicit access policy into ordered ACL entries and interface direction.
  • Prove denied paths and allowed controls with real host traffic.

CCNA blueprint

200-301 v1.1 objectives — this lab covers the following specific skills, not every subtopic in the domain.

  • 5.6 — Configure and verify IPv4 access control lists using source/destination policy.

Starting information

  • Users: PC1=10.10.10.10 (authorized), PC3=10.10.10.30 (restricted), attached through R1 g0/0. Resources: PC2=10.20.20.20 and PC4=10.20.20.40, through R1 g0/1.
  • Policy: PC1 reaches both resources. PC3 is denied only to PC2 and remains permitted to PC4.
  • Apply ACL 101 outbound on R1 g0/1. Keep all host settings and router addresses unchanged.
  • These exercises verify IPv4 source/destination policy with ICMP traffic. They do not claim application-port filtering or stateful firewall behavior.
HostIPv4 addressMaskGateway
PC110.10.10.10255.255.255.010.10.10.1
PC310.10.10.30255.255.255.010.10.10.1
PC210.20.20.20255.255.255.010.20.20.1
PC410.20.20.40255.255.255.010.20.20.1
RouterInterfaceIPv4 addressMask
R1g0/010.10.10.1255.255.255.0
R1g0/110.20.20.1255.255.255.0
Device / portDevice / port
R1 / g0/0SW1 / g0/8
R1 / g0/1SW2 / g0/8
PC1 / eth0SW1 / g0/1
PC3 / eth0SW1 / g0/2
PC2 / eth0SW2 / g0/1
PC4 / eth0SW2 / g0/2

Tasks

  1. Test PC1 and PC3 to both resource hosts and record the initial results. Inspect the ACL entries and R1 interface attachment.
  2. Apply the approved source/destination policy, ordering and outbound attachment. Preserve the unrelated permitted paths.
  3. Repeat the four-path matrix. A failed forbidden path is insufficient by itself: the allowed control paths must still pass.
  4. Inspect show access-lists and show running-config interface g0/1, then save/export and verify the completed network after reload.

Useful commands

show access-lists
show running-config interface g0/1
copy running-config startup-config

Progressive hints

Hint 1

Draw the packet direction through R1 before choosing an ACL attachment.

Hint 2

ACLs use the first matching entry. Standard ACLs match the source; extended ACLs can also distinguish the destination.

Hint 3

The intended flow exits R1 g0/1. Put the specific deny before the broad permit and apply the list outbound.

Verification

  • The final four-path matrix matches the approved policy exactly.
  • The intended ACL is applied outbound on R1 g0/1 with no stale inbound attachment.
  • Export/reload preserves both permitted and denied outcomes.

Solution / walkthrough

Show Solution

Use enable only from a > prompt; if already at #, begin with configure terminal.

R1

Apply the required first-match policy in the direction traversed by Users-to-Resources packets; retain the explicit permitted control paths.

enable
configure terminal
access-list 101 deny ip host 10.10.10.30 host 10.20.20.20
access-list 101 permit ip any any
interface g0/1
ip access-group 101 out
end
copy running-config startup-config

Run every verification check above after the changes. A saved configuration alone does not prove packet delivery.
