Topology

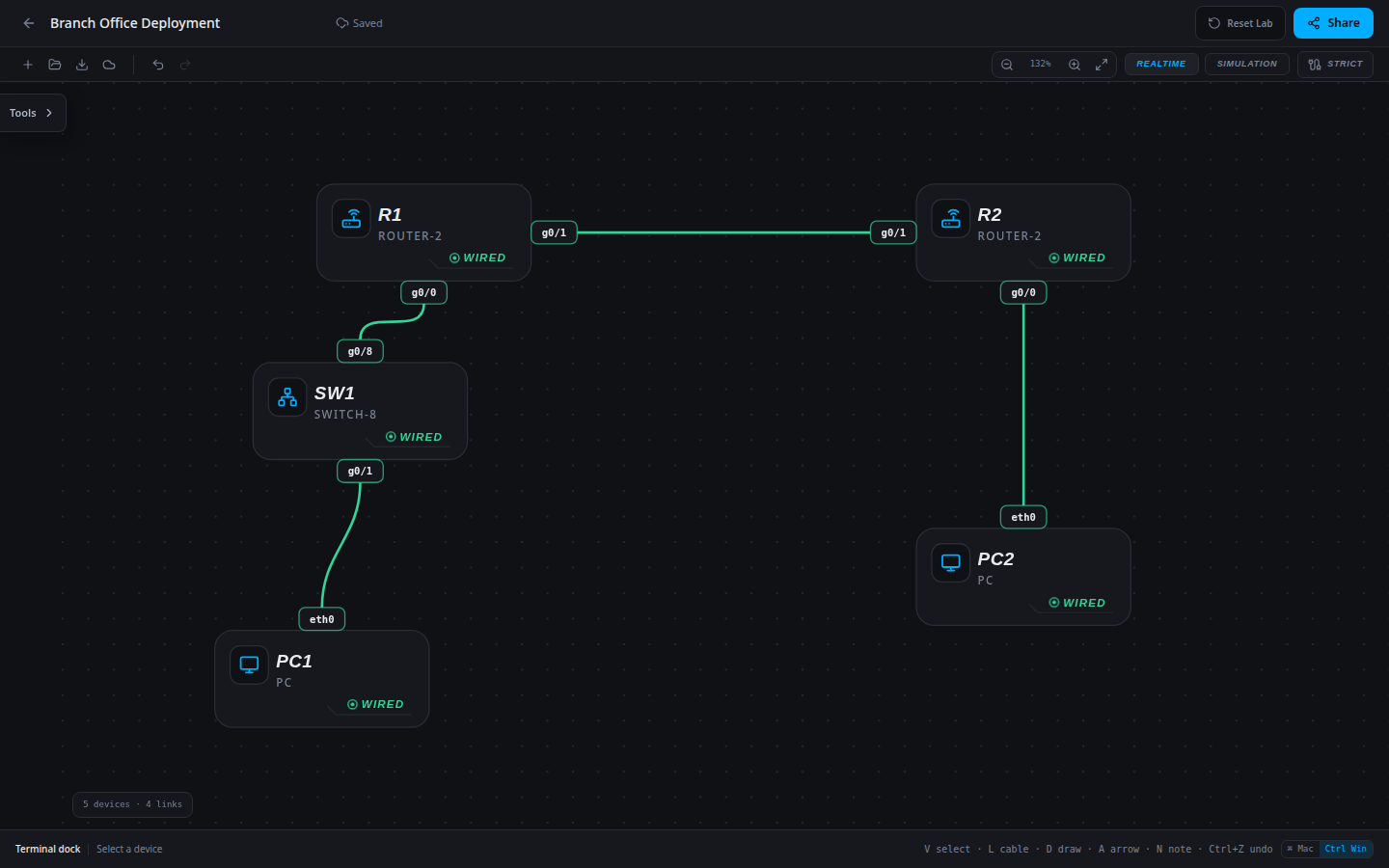

Branch Office Deployment: starting network imported into the SwitchLab sandbox.
Starting topology captured in SwitchLab. Select the image to view it at full size.

5 devices · 4 links

Scenario

The branch cabling and router addresses are installed. Deliver automatic client addressing and routed access to the resource site with a complete verification handoff.

Objectives

  • Implement or restore the approved network design without breaking required control paths.
  • Verify configuration, end-to-end behavior and completed-network persistence.
  • Produce an operational handoff with evidence and a deterministic reset path.

CCNA blueprint

200-301 v1.1 objectives — this lab covers the following specific skills, not every subtopic in the domain.

  • 1.6 — Apply and verify the scenario’s IPv4 addressing.
  • 3.4 — Configure or repair single-area OSPF.
  • 4.3 — Explain DHCP addressing services.
  • 4.6 — Verify a DHCP client lease.

Starting information

  • PC1 uses 10.10.10.0/24 through R1 g0/0=10.10.10.1; PC2 is 10.20.20.20/24 through R2 g0/0=10.20.20.1.
  • The g0/1 transit is 10.0.12.1/30 on R1 and 10.0.12.2/30 on R2. Preserve all cables and router addresses.
  • OSPF process 1 uses area 0 and router IDs 1.1.1.1 / 2.2.2.2; advertise the transit and both LANs while keeping g0/0 passive.
  • R1 hosts DHCP pool BRANCH for 10.10.10.0/24, excluding .1–.19; gateway .1. PC1 remains a DHCP client and obtains .20 in this isolated lab.
HostIPv4 addressMaskGateway
PC1255.255.255.0None
PC210.20.20.20255.255.255.010.20.20.1
RouterInterfaceIPv4 addressMask
R1g0/010.10.10.1255.255.255.0
R1g0/110.0.12.1255.255.255.252
R2g0/010.20.20.1255.255.255.0
R2g0/110.0.12.2255.255.255.252
Device / portDevice / port
R1 / g0/1R2 / g0/1
PC2 / eth0R2 / g0/0
PC1 / eth0SW1 / g0/1
SW1 / g0/8R1 / g0/0

Tasks

  1. Prepare the DHCP pool, exclusions and OSPF plan from the approved addressing.
  2. Configure both routers, then renew PC1 and verify its lease settings.
  3. Prove FULL neighbors, remote OSPF routes and both host traffic directions using the leased address.
  4. Save/export/reload, renew as needed and deliver the addressing, route and DHCP evidence in the branch handoff.

Useful commands

show ip ospf neighbor
show ip route
show running-config
copy running-config startup-config

Progressive hints

Hint 1

Break the end-to-end path into host settings, local VLAN carriage, gateway reachability, route selection and any access policy.

Hint 2

Use a working control at each layer. Do not remove security controls or add broad routes just to make one ping succeed.

Hint 3

Compare each affected host, interface and route against the approved plan; use the earlier focused lessons for the exact command patterns.

Verification

  • The final network matches every approved addressing, VLAN, routing and policy requirement above.
  • Every required positive path succeeds and every forbidden path remains blocked.
  • Completed export/reload retains the result; reimporting the starter restores the original exercise.

Solution / walkthrough

Show Solution

Use enable only from a > prompt; if already at #, begin with configure terminal.

R1

Apply the approved OSPF process and keep the LAN passive; verify remote routes are learned dynamically.

enable
configure terminal
router ospf 1
router-id 1.1.1.1
network 10.10.10.0 0.0.0.255 area 0
network 10.0.12.0 0.0.0.3 area 0
passive-interface g0/0
exit
ip dhcp excluded-address 10.10.10.1 10.10.10.19
ip dhcp pool BRANCH
network 10.10.10.0 255.255.255.0
default-router 10.10.10.1
exit
end
copy running-config startup-config

R2

Apply the approved OSPF process and keep the LAN passive; verify remote routes are learned dynamically.

enable
configure terminal
router ospf 1
router-id 2.2.2.2
network 10.20.20.0 0.0.0.255 area 0
network 10.0.12.0 0.0.0.3 area 0
passive-interface g0/0
exit
end
copy running-config startup-config

PC1

Obtain the approved branch lease only after the pool and routed path are ready.

ipconfig /renew

Run every verification check above after the changes. A saved configuration alone does not prove packet delivery.
