Deliver Dual-Stack Connectivity between Sites

Open the lab

1. Save the .swlab file without renaming its extension.
2. Open SwitchLab. Import and export controls currently require a desktop-width window. On a smaller screen, Tools → Fit brings the topology into view.
3. Select Import Sandbox (folder icon), choose the downloaded file, and confirm the device and cable counts below.
4. Select a device, then choose Open device on desktop or its name in the bottom bar on smaller screens. Select CLI for switches/routers or Desktop → Terminal for PCs. Enter enable only when the prompt ends in >.
5. Follow this page beside the simulator. Use a free account to export your work. Reimport the original download to restart; export any work you want to keep first.

Prerequisites

• Complete IPv4 addressing and static routing.
• Recognize IPv6 hexadecimal addresses and /64 prefixes.

Follow the CCNA study path · Browse all SwitchLab labs

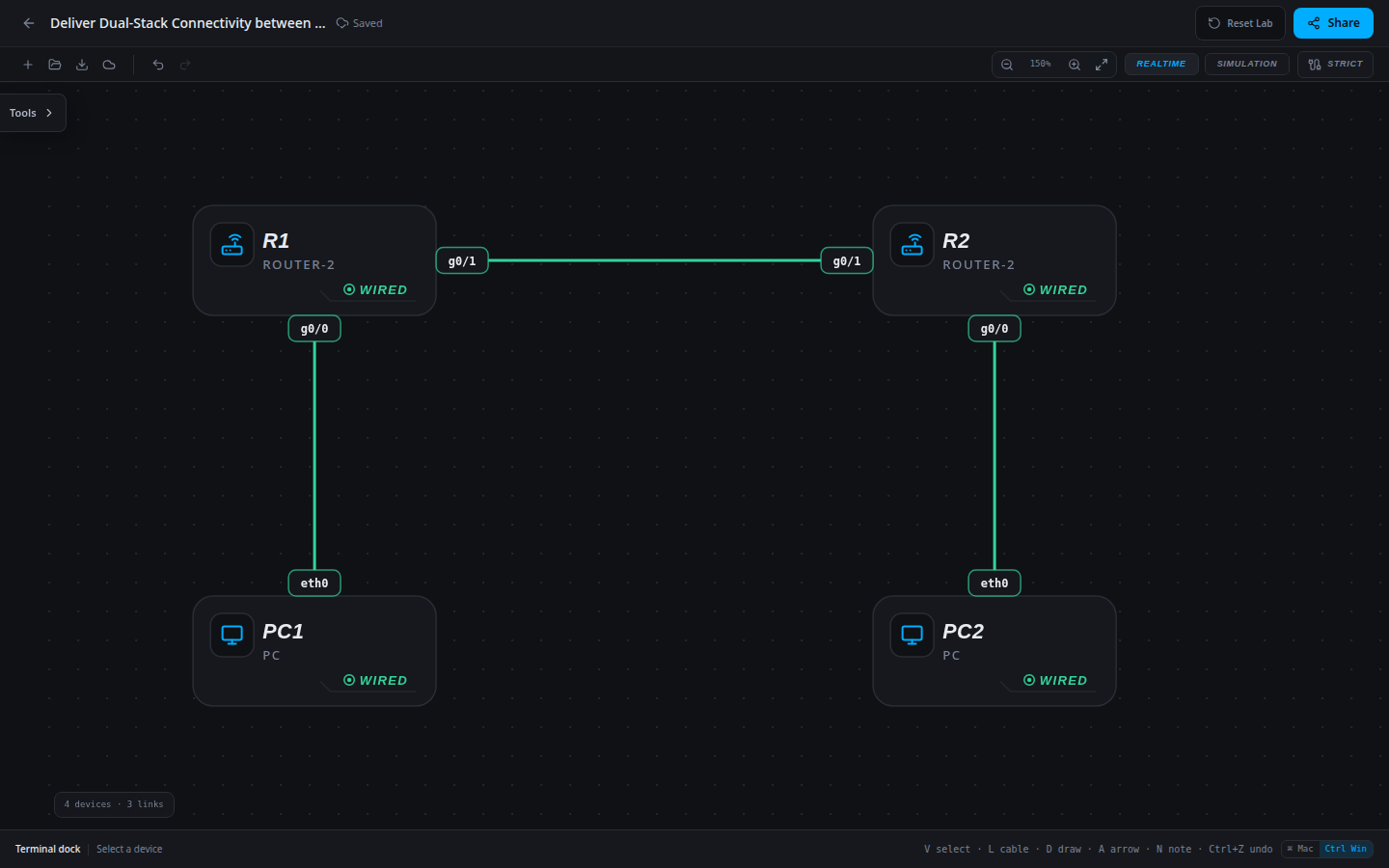

Topology

4 devices · 3 links

Scenario

A branch rollout requires both address families. IPv4 interfaces and all hosts are pre-addressed, but site routes and router IPv6 configuration are unfinished. Complete the approved plan without treating one successful address family as proof of the other.

Objectives

• Verify IPv6 interface addressing and the host gateway relationship.
• Prove IPv6 forward and return delivery independently of IPv4.

CCNA blueprint

200-301 v1.1 objectives — this lab covers the following specific skills, not every subtopic in the domain.

• 1.8 — Configure and verify IPv6 addressing and prefixes.
• 3.3 — Configure and verify IPv6 static routes.

Starting information

• R1 g0/0: 2001:db8:10::1/64; R2 g0/0: 2001:db8:20::1/64. Hosts and IPv6 gateways are listed below.
• Transit: R1 g0/1=2001:db8:12::1/64 and R2 g0/1=2001:db8:12::2/64.
• Use a specific route to the remote /64 through the peer’s transit address. Preserve the IPv4 plan shown in the starter table.
• These reserved documentation prefixes are for this isolated lab. IPv6 forwarding is configured separately from IPv4.

Tasks

1. Inspect each PC’s ipconfig /all, each router’s show ipv6 interface brief and show ipv6 route, and baseline both address families.
2. Apply only the configuration required by this scenario using the approved LAN and transit plan.
3. Verify the intended connected /64 prefixes and each remote route. Check both ends; an outbound route alone does not provide a return path.
4. From PC1 ping 2001:db8:20::20; from PC2 ping 2001:db8:10::10. Also verify the IPv4 control path, then save/export and reload.

Useful commands

show ipv6 interface brief
show ipv6 route
show running-config
copy running-config startup-config

Progressive hints

Verification

• Both IPv6 host-to-host directions succeed.
• The IPv4 control path also succeeds after completion.
• The repaired or completed IPv6 interface and route configuration survives export/reload.

Solution / walkthrough

enable
configure terminal
ipv6 unicast-routing
interface g0/0
ipv6 address 2001:db8:10::1/64
exit
interface g0/1
ipv6 address 2001:db8:12::1/64
exit
ipv6 route 2001:db8:20::/64 2001:db8:12::2
ip route 10.20.20.0 255.255.255.0 10.0.12.2
end
copy running-config startup-config

enable
configure terminal
ipv6 unicast-routing
interface g0/0
ipv6 address 2001:db8:20::1/64
exit
interface g0/1
ipv6 address 2001:db8:12::2/64
exit
ipv6 route 2001:db8:10::/64 2001:db8:12::1
ip route 10.10.10.0 255.255.255.0 10.0.12.1
end
copy running-config startup-config
