Prerequisites

  • Complete IPv4 routing and standard ACL fundamentals.

Follow the CCNA study path · Browse all SwitchLab labs

Topology

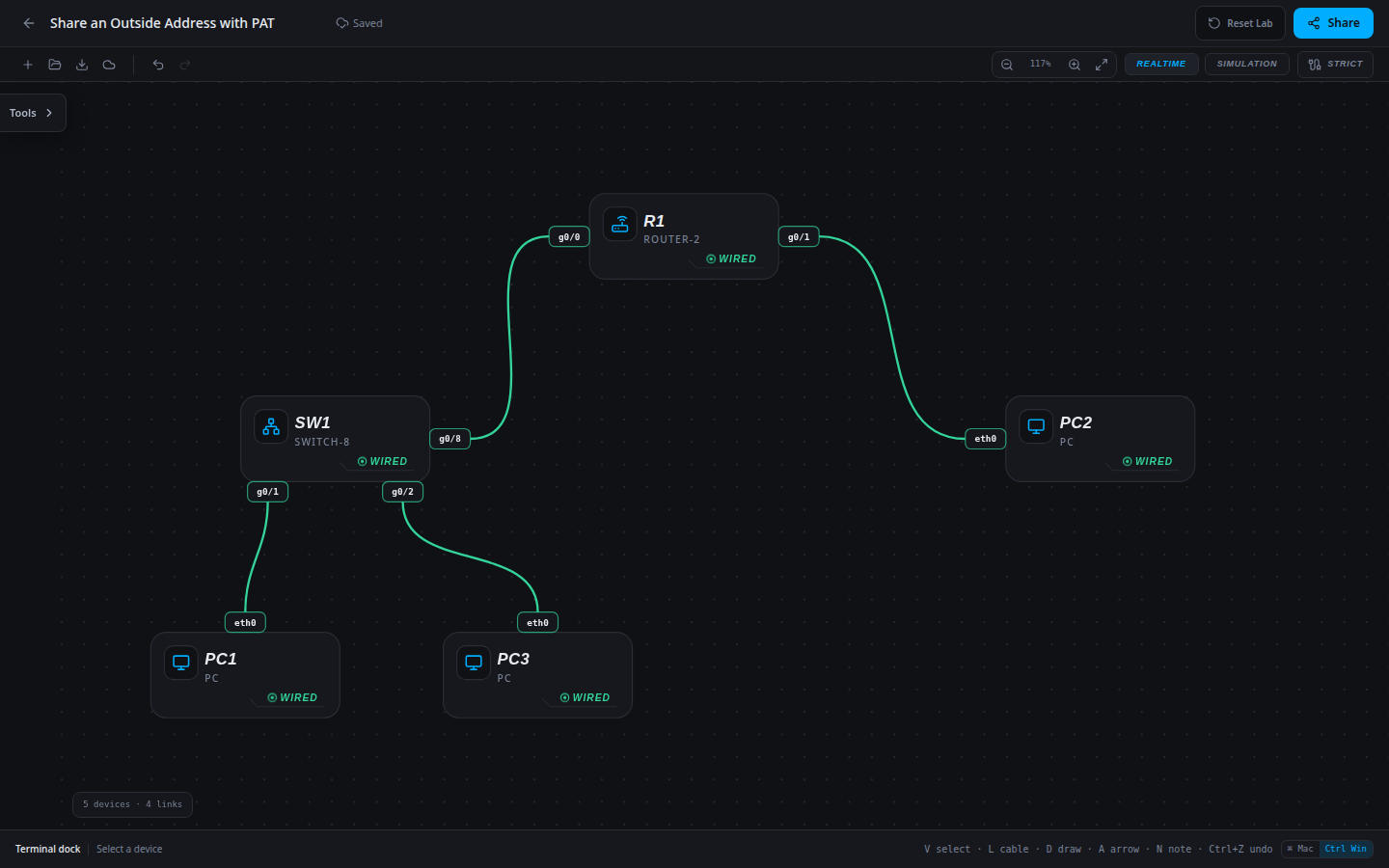

Share an Outside Address with PAT: starting network imported into the SwitchLab sandbox.
Starting topology captured in SwitchLab. Select the image to view it at full size.

5 devices · 4 links

Scenario

Two private clients need to reach the outside test host through one routable interface address. Configure PAT and verify that both inside hosts receive translations.

Objectives

  • Configure the approved NAT rule and interface roles.
  • Prove translated delivery and identify local/global addresses in operational evidence.

CCNA blueprint

200-301 v1.1 objectives — this lab covers the following specific skills, not every subtopic in the domain.

  • 4.1 — Configure and verify inside-source IPv4 NAT; interface PAT is a related practical extension.

Starting information

  • Inside LAN: 10.10.10.0/24 via R1 g0/0=10.10.10.1. Outside: R1 g0/1=203.0.113.1/24 and PC2=203.0.113.20.
  • PC2’s configured 203.0.113.254 gateway is intentionally absent; it has no private-LAN return route. Preserve it so untranslated traffic cannot accidentally pass the lab.
  • Approved mapping: 10.10.10.0/24 shares R1 g0/1 using ACL 10 and overload.
  • Use traffic and translation-table evidence together; NAT configuration text alone does not prove an active translation.
HostIPv4 addressMaskGateway
PC110.10.10.10255.255.255.010.10.10.1
PC310.10.10.30255.255.255.010.10.10.1
PC2203.0.113.20255.255.255.0203.0.113.254
RouterInterfaceIPv4 addressMask
R1g0/010.10.10.1255.255.255.0
R1g0/1203.0.113.1255.255.255.0
Device / portDevice / port
PC1 / eth0SW1 / g0/1
PC3 / eth0SW1 / g0/2
SW1 / g0/8R1 / g0/0
R1 / g0/1PC2 / eth0

Tasks

  1. Record baseline inside-to-outside ping failures and inspect the route table, NAT roles and translation configuration.
  2. Apply the approved mapping and interface roles without giving PC2 a private-LAN return route.
  3. Generate PC1 traffic to 203.0.113.20, then generate PC3 traffic to the same target.
  4. Inspect show ip nat translations after the traffic; identify each inside-local address and its approved inside-global address. Save/export and repeat the checks after reload.

Useful commands

show running-config
show ip route
copy running-config startup-config

Progressive hints

Hint 1

Check how the outside host would return a reply to an untranslated private address.

Hint 2

The source ACL selects addresses for translation; it is not applied as a traffic-filtering ACL in this lab.

Hint 3

Mark g0/0 inside and g0/1 outside, then apply the approved static mapping or interface overload rule.

Verification

  • Required inside clients reach PC2; the untranslated control stays blocked in the static-NAT lesson.
  • Translation output maps the expected inside-local addresses to the approved global address.
  • Export/reload retains the configuration and new traffic recreates the required translation behavior.

Solution / walkthrough

Show Solution

Use enable only from a > prompt; if already at #, begin with configure terminal.

R1

Keep inside/outside roles aligned with the physical path and generate real traffic before reading the translation table.

enable
configure terminal
interface g0/0
ip nat inside
exit
interface g0/1
ip nat outside
exit
access-list 10 permit 10.10.10.0 0.0.0.255
ip nat inside source list 10 interface g0/1 overload
end
copy running-config startup-config

Run every verification check above after the changes. A saved configuration alone does not prove packet delivery.
