Open the lab

[ YOUR LAB FILE ]

Download the starting topology, then work through the lesson in SwitchLab.

Download SwitchLab Lab (.swlab)

  1. Save the .swlab file without renaming its extension.
  2. Open SwitchLab. Import and export controls currently require a desktop-width window. On a smaller screen, Tools → Fit brings the topology into view.
  3. Select Import Sandbox (folder icon), choose the downloaded file, and confirm the device and cable counts below.
  4. Select a device, then choose Open device on desktop or its name in the bottom bar on smaller screens. Select CLI for switches/routers or Desktop → Terminal for PCs. Enter enable only when the prompt ends in >.
  5. Follow this page beside the simulator. Use a free account to export your work. Reimport the original download to restart; export any work you want to keep first.

Prerequisites

  • Complete IPv4 routing and standard ACL fundamentals.

Follow the CCNA study path · Browse all SwitchLab labs

Topology

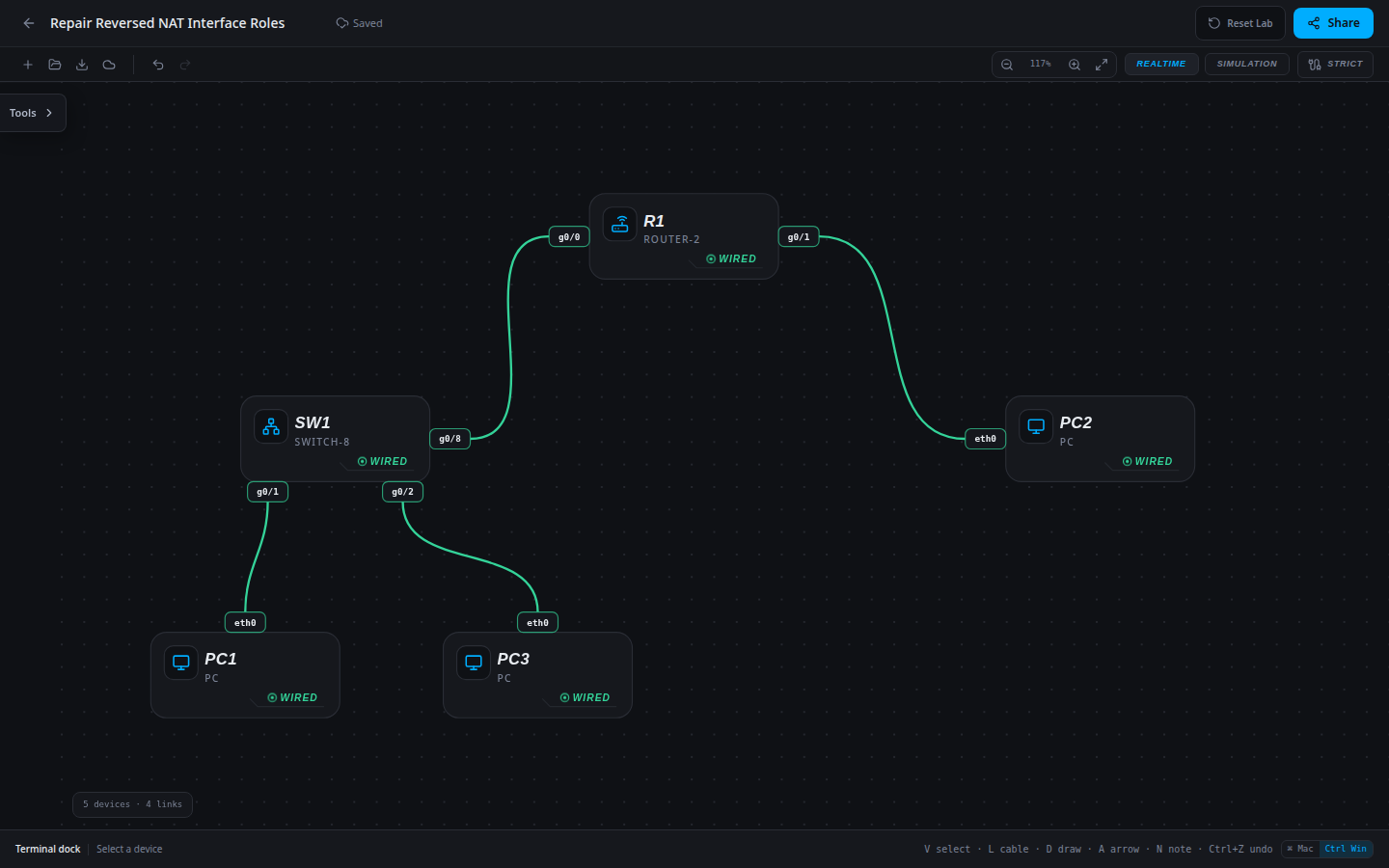

Repair Reversed NAT Interface Roles: starting network imported into the SwitchLab sandbox.
Starting topology captured in SwitchLab. Select the image to view it at full size.

5 devices · 4 links

Scenario

The PAT rule and source ACL are correct, but a change swapped the interface roles. Neither inside client receives the intended translation. Repair the roles and verify both clients.

Objectives

  • Configure the approved NAT rule and interface roles.
  • Prove translated delivery and identify local/global addresses in operational evidence.

CCNA blueprint

200-301 v1.1 objectives — this lab covers the following specific skills, not every subtopic in the domain.

  • 4.1 — Configure and verify inside-source IPv4 NAT; interface PAT is a related practical extension.

Starting information

  • Inside LAN: 10.10.10.0/24 via R1 g0/0=10.10.10.1. Outside: R1 g0/1=203.0.113.1/24 and PC2=203.0.113.20.
  • PC2’s configured 203.0.113.254 gateway is intentionally absent; it has no private-LAN return route. Preserve it so untranslated traffic cannot accidentally pass the lab.
  • Approved mapping: 10.10.10.0/24 shares R1 g0/1 using ACL 10 and overload.
  • Use traffic and translation-table evidence together; NAT configuration text alone does not prove an active translation.
HostIPv4 addressMaskGateway
PC110.10.10.10255.255.255.010.10.10.1
PC310.10.10.30255.255.255.010.10.10.1
PC2203.0.113.20255.255.255.0203.0.113.254
RouterInterfaceIPv4 addressMask
R1g0/010.10.10.1255.255.255.0
R1g0/1203.0.113.1255.255.255.0
Device / portDevice / port
PC1 / eth0SW1 / g0/1
PC3 / eth0SW1 / g0/2
SW1 / g0/8R1 / g0/0
R1 / g0/1PC2 / eth0

Tasks

  1. Record baseline inside-to-outside ping failures and inspect the route table, NAT roles and translation configuration.
  2. Apply the approved mapping and interface roles without giving PC2 a private-LAN return route.
  3. Generate PC1 traffic to 203.0.113.20, then generate PC3 traffic to the same target.
  4. Inspect show ip nat translations after the traffic; identify each inside-local address and its approved inside-global address. Save/export and repeat the checks after reload.

Useful commands

show running-config
show ip route
copy running-config startup-config

Progressive hints

Hint 1

Check how the outside host would return a reply to an untranslated private address.

Hint 2

The source ACL selects addresses for translation; it is not applied as a traffic-filtering ACL in this lab.

Hint 3

Mark g0/0 inside and g0/1 outside, then apply the approved static mapping or interface overload rule.

Verification

  • Required inside clients reach PC2; the untranslated control stays blocked in the static-NAT lesson.
  • Translation output maps the expected inside-local addresses to the approved global address.
  • Export/reload retains the configuration and new traffic recreates the required translation behavior.

Solution / walkthrough

Show Solution

Use enable only from a > prompt; if already at #, begin with configure terminal.

R1

Keep inside/outside roles aligned with the physical path and generate real traffic before reading the translation table.

enable
configure terminal
interface g0/0
no ip nat outside
ip nat inside
exit
interface g0/1
no ip nat inside
ip nat outside
exit
end
copy running-config startup-config

Run every verification check above after the changes. A saved configuration alone does not prove packet delivery.
