Topology

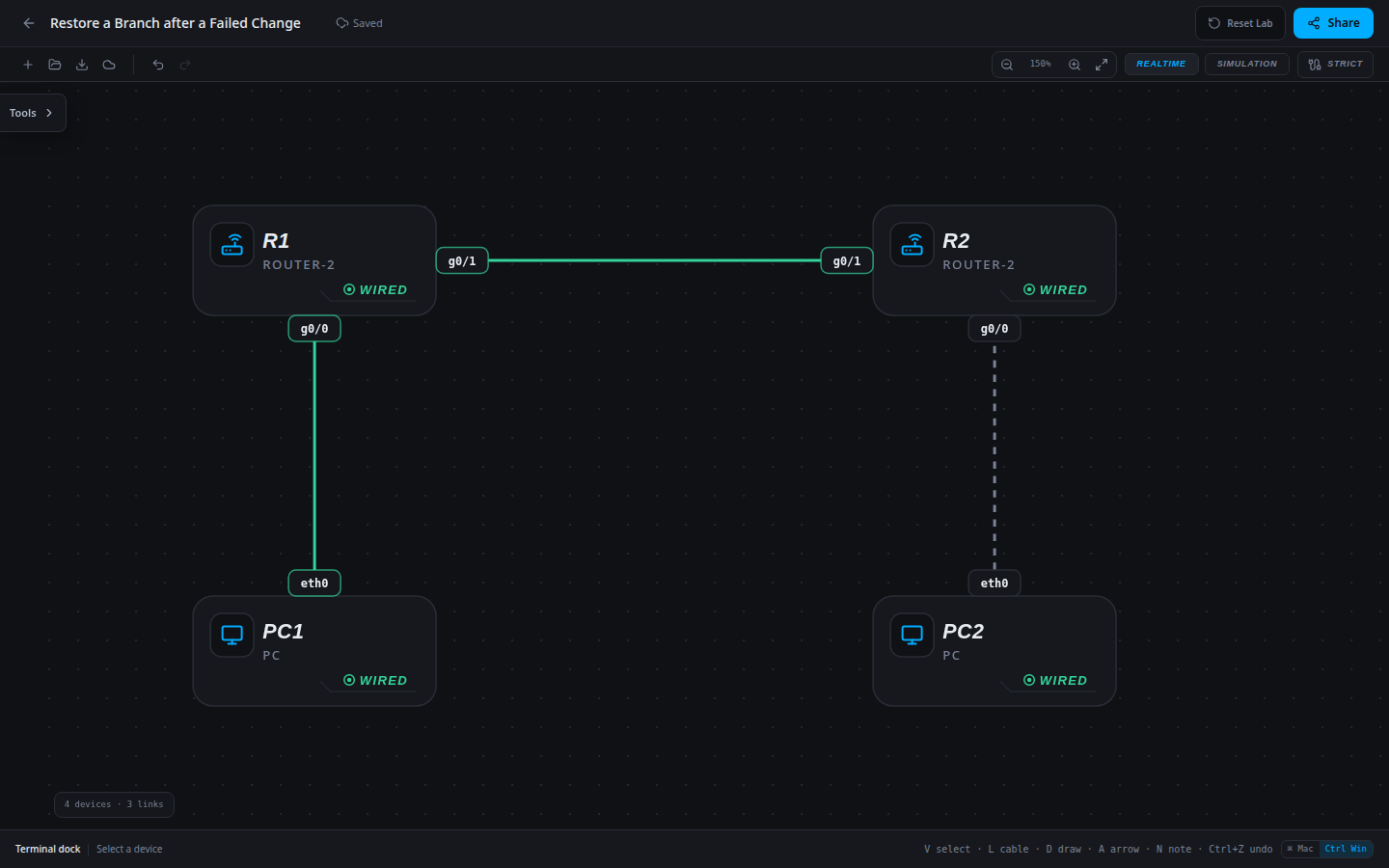

Restore a Branch after a Failed Change: starting network imported into the SwitchLab sandbox.
Starting topology captured in SwitchLab. Select the image to view it at full size.

4 devices · 3 links

Scenario

A maintenance script changed a static route and disabled the remote user interface. The transit is still up. Recover the branch without replacing the correct host settings or return route.

Objectives

  • Implement or restore the approved network design without breaking required control paths.
  • Verify configuration, end-to-end behavior and completed-network persistence.
  • Produce an operational handoff with evidence and a deterministic reset path.

CCNA blueprint

200-301 v1.1 objectives — this lab covers the following specific skills, not every subtopic in the domain.

  • 1.6 — Apply and verify the scenario’s IPv4 addressing.
  • 3.3 — Repair an IPv4 static route and its forwarding path.

Starting information

  • PC1 uses 10.10.10.0/24 through R1 g0/0=10.10.10.1; PC2 is 10.20.20.20/24 through R2 g0/0=10.20.20.1.
  • The g0/1 transit is 10.0.12.1/30 on R1 and 10.0.12.2/30 on R2. Preserve all cables and router addresses.
HostIPv4 addressMaskGateway
PC110.10.10.10255.255.255.010.10.10.1
PC210.20.20.20255.255.255.010.20.20.1
RouterInterfaceIPv4 addressMask
R1g0/010.10.10.1255.255.255.0
R1g0/110.0.12.1255.255.255.252
R2g0/010.20.20.1255.255.255.0
R2g0/110.0.12.2255.255.255.252
Device / portDevice / port
PC1 / eth0R1 / g0/0
R1 / g0/1R2 / g0/1
PC2 / eth0R2 / g0/0

Tasks

  1. Compare both routers’ interface and route output with the cable/address plan.
  2. Identify the forwarding and destination-interface faults; explain why correcting only one cannot restore the service.
  3. Apply the smallest two repairs, then test each host’s local gateway and both intersite directions.
  4. Save/export/reload and document the fault-to-evidence mapping for the incident handoff.

Useful commands

show ip interface brief
show ip route
show running-config
copy running-config startup-config

Progressive hints

Hint 1

Break the end-to-end path into host settings, local VLAN carriage, gateway reachability, route selection and any access policy.

Hint 2

Use a working control at each layer. Do not remove security controls or add broad routes just to make one ping succeed.

Hint 3

Compare each affected host, interface and route against the approved plan; use the earlier focused lessons for the exact command patterns.

Verification

  • The final network matches every approved addressing, VLAN, routing and policy requirement above.
  • Every required positive path succeeds and every forbidden path remains blocked.
  • Completed export/reload retains the result; reimporting the starter restores the original exercise.

Solution / walkthrough

Show Solution

Use enable only from a > prompt; if already at #, begin with configure terminal.

R1

Use the actually connected peer as next hop.

enable
configure terminal
no ip route 10.20.20.0 255.255.255.0 10.0.12.99
ip route 10.20.20.0 255.255.255.0 10.0.12.2
end
copy running-config startup-config

R2

Restore the destination LAN interface; a correct route cannot deliver to a disabled LAN.

enable
configure terminal
interface g0/0
no shutdown
end
copy running-config startup-config

Run every verification check above after the changes. A saved configuration alone does not prove packet delivery.
